| Description |

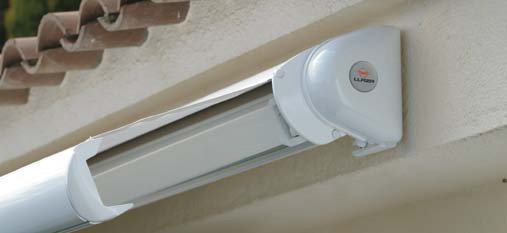

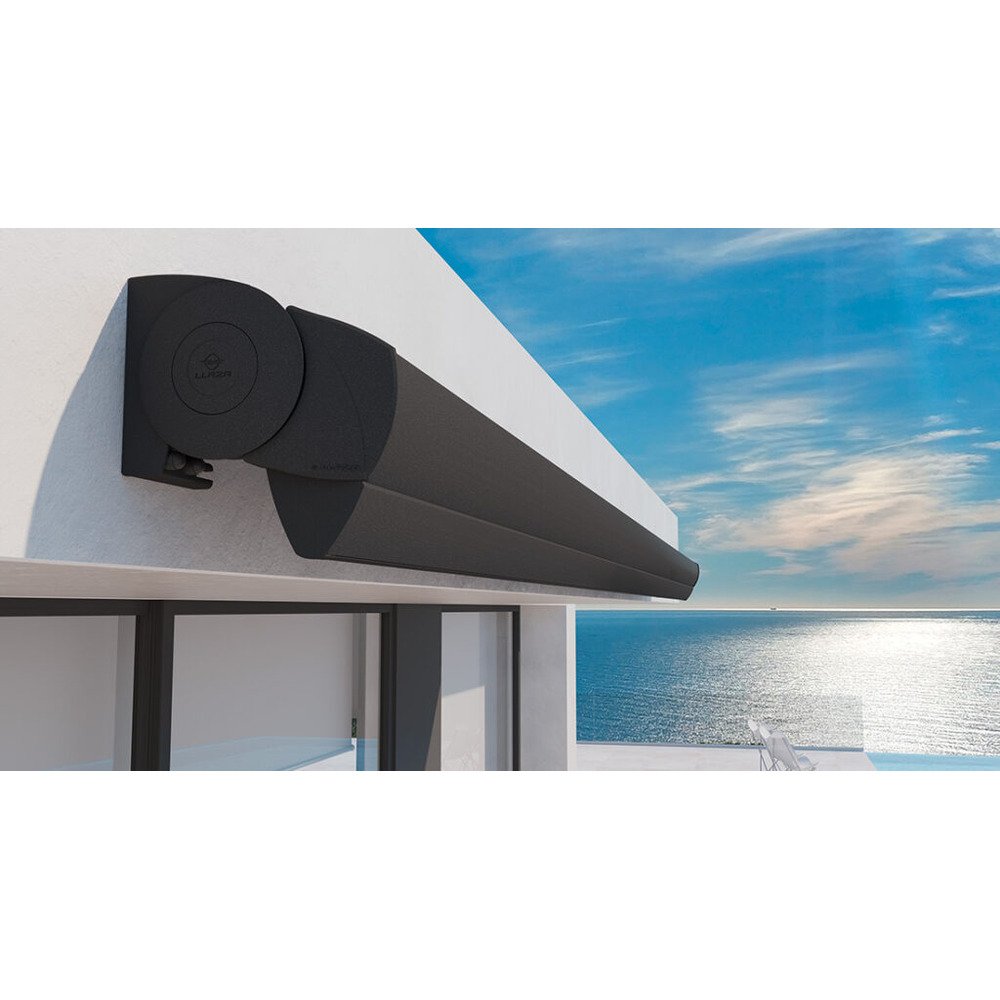

This awning comes with a cassette system and is light,
easy to install and very attractive. Thanks to its self-protection
system, there is no need to perform maintenance on
the awning and it will have a considerably longer lifespan.
Ideal for installation
• On balconies
• On small terraces |
| European standard |
Classification: Class 2 |
| Finishes |
• Lacquer in accordance with QUALICOAT standards
• Stainless steel screws and bolts |
| Roller capacity |
With Ø70 tube
2.50 m
With Ø80 tube
1.50 m
Maximum width according to maximum projection
With 2.5 m arms
4.50 m
Minimum width with two ART-250 arms
Projection
N° of arms
1.25 m
1.59 m
1.50 m
1.84 m
1.75 m
2.09 m
2.00 m
2.34 m
2.25 m
2.59 m
2.50 m
2.84 m |
| Operation |
• Manual
• Motorised
• Automated |
| The tension transmission system |
This system is especially designed to include the ART 250 invisible arms system with the internal ART SYSTEM tensioning system to provide greater strength and durability and extend the lifespan of the system by ten times. |
| Features |
• An advanced design with soft, rounded, aerodynamic curves to help it blend in to become a harmonious and beautiful addition to any setting.
• Conceals all of the mechanical mounting elements.
• Protects the fabric and the awning mechanism when retracted.
• The ideal dimensions for use in small spaces while still providing numerous
benefits. |
| Roller capacity |
With Ø70 tube
2.50 m
With Ø80 tube
1.50 m
Maximum width according to maximum projection
With 2.5 m arms
4.50 m
Minimum width with two ART-250 arms
Projection
N° of arms
1.25 m
1.59 m
1.50 m
1.84 m
1.75 m
2.09 m
2.00 m
2.34 m
2.25 m
2.59 m
2.50 m
2.84 m |
