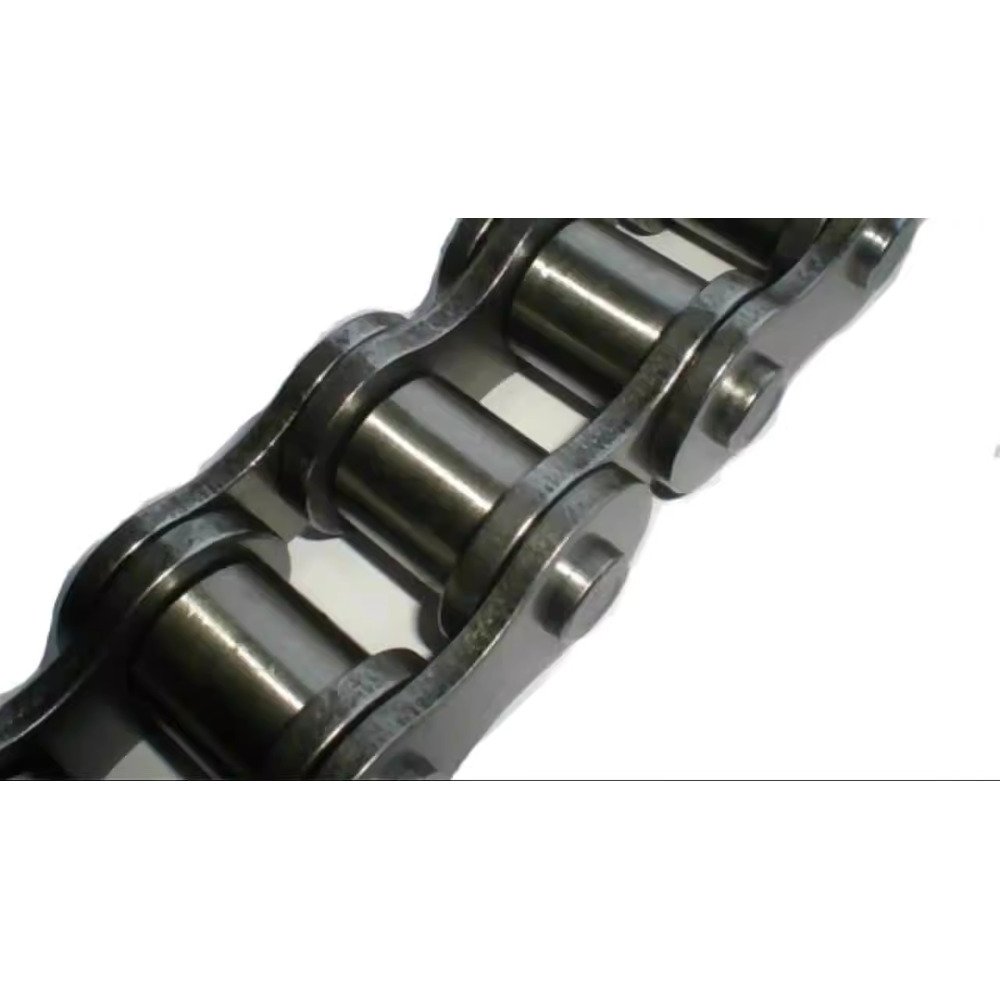

Short Pitch Precision Roller Chains (B Series)

Short Pitch Precision Roller Chains (B Series)
Short Pitch Precision Roller Chains (B Series) - Image 2
Short Pitch Precision Roller Chains (B Series) - Image 3
Short Pitch Precision Roller Chains (B Series) - Image 4

Short Pitch Precision Roller Chains (B Series)

These B Series Short Pitch Precision Roller Chains are engineered to DIN/ISO standards, available in Simplex, Duplex, and Triplex configurations to suit diverse power transmission needs. Each chain is characterized by its specific pitch, ranging from 6.000 mm to 114.300 mm, alongside defined roller diameters and plate thicknesses. Key specifications include ultimate and average tensile strength, and weight per meter, varying across the range. With precise dimensions for pin diameter, pin length, and inner plate depth, these chains offer reliable performance for industrial applications requiring robust power transfer.

Category: Brand:
B SeriesShort Pitch Precision Roller Chains (B Series)

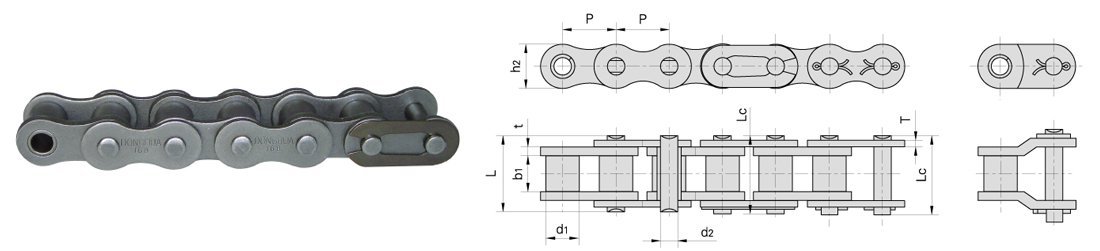

Simplex Roller Chains
DIN/ISO Chain No. Pitch (p | mm) Roller Diameter Inner plates Width Pin Diameter () Pin Length Inner Plate Depth Plate Thickness Ultimate Tensile Strength Average Tensile Strength Weight per meter
p d1 max b1 min d2 max L max Lc max h2 max t/T max Q min Q0 q
mm mm mm mm mm mm mm mm kN/LB kN kg/m
04B-1 6.000 4.00 2.80 1.85 6.80 7.8 5.00 0.60 3.0/682 3.2 0.11
05B-1 8.000 5.00 3.00 2.31 8.20 8.9 7.10 0.80 5.0/1136 5.9 0.20
*06B-1 9.525 6.35 5.72 3.28 12.40 13.15 14.1 8.20 9.0/2045 10.4 0.41
08B-1 12.700 8.51 7.75 4.45 16.70 18.2 11.80 1.60 18.0/4091 19.4 0.69
10B-1 15.875 10.16 9.65 5.08 19.50 20.9 14.70 1.70 22.4/5091 27.4 0.93
12B-1 19.050 12.07 11.68 5.72 22.50 24.2 16.00 1.85 29.0/6591 32.2 1.15
16B-1 25.400 15.88 17.02 8.28 36.10 37.10 21.00 4.15/3.1 60.0/13636 72.6 2.71
20B-1 31.750 19.05 19.56 10.19 41.30 45.0 26.40 4.5/3.5 95.0/21591 106.7 3.70
24B-1 38.100 25.40 25.40 14.63 53.40 57.8 33.20 6.0/4.8 160.0/36384 178.0 7.10
28B-1 44.450 27.94 30.99 15.90 65.10 69.5 36.70 7.5/6.0 200.0/45455 222.0 8.50
32B-1 50.800 29.21 30.99 17.81 66.00 71.0 42.00 7.0/6.0 250.0/56818 277.5 10.25
40B-1 63.500 39.37 38.10 22.39 82.20 89.2 52.96 8.5/8.0 355.0/80682 394.0 16.35
48B-1 76.200 48.26 45.72 29.24 99.10 107.0 63.80 12.0/10.0 560.0/127272 621.6 25.00
56B-1 88.900 53.98 53.34 34.32 114.6 123.0 77.80 13.5/12.0 950.0/193180 940.0 36.78
64B-1 101.600 63.50 60.96 39.40 130.0 138.5 90.17 15.0/13.0 112.0/254544 1240.0 46.00
72B-1 114.300 72.39 68.58 44.48 147.4 156.4 103.60 17.0/15.0 1400.0/318180 1550.0 60.80

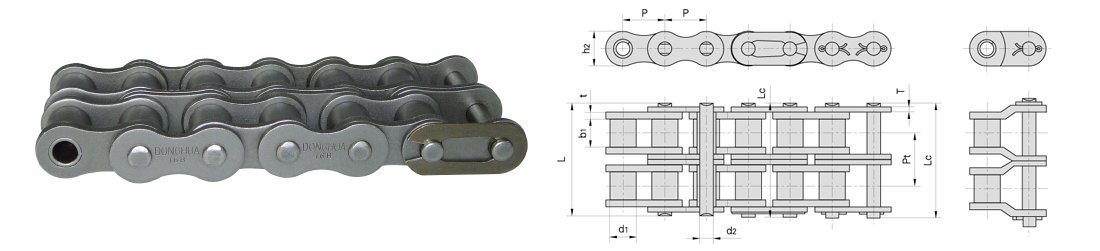

Duplex Roller Chains
DIN/ISO Chain No. Pitch (p | mm) Roller Diameter Inner plates Width Pin Diameter () Pin Length Inner Plate Depth Plate Thickness Transverse Pitch Ultimate Tensile Strength Average Tensile Strength Weight per meter
p d1 max b1 min d2 max L max Lc max h2 max t/T max Pt Q min Q0 q
mm mm mm mm mm mm mm mm mm kN/LB kN kg/m
05B-2 8.000 5.00 3.00 2.31 13.9 14.5 7.10 0.90 5.64 7.8/1773 10.2 0.33
*06B-2 9.525 6.35 5.72 3.28 23.4 24.4 8.20 1.30 10.24 16.9/3841 18.7 0.77
08B-2 12.700 8.51 7.75 4.45 31.0 32.2 11.80 1.60 13.92 32.0/7273 38.7 1.34
10B-2 15.875 10.16 9.65 5.08 36.1 37.5 14.70 1.70 16.59 44.5/10114 56.2 1.84
12B-2 19.050 12.07 11.68 5.72 42.0 43.6 16.00 1.85 19.46 57.8/13136 66.1 2.31
16B-1 25.400 15.88 17.02 8.28 68.0 69.3 21.00 4.15/3.1 31.88 106.0/24091 133.0 5.42
20B-2 31.750 19.05 19.56 10.19 77.8 81.5 26.40 4.5/3.5 36.45 170.0/38636 211.2 7.20
24B-2 38.100 25.40 25.40 14.63 101.7 106.2 33.20 6.0/4.8 48.36 290.0/63636 319.2 13.40
28B-2 44.450 27.94 30.99 15.90 124.6 129.1 36.70 7.5/6.0 59.56 360.0/81818 319.2 13.40
32B-2 50.800 29.21 30.99 17.81 124.6 129.6 42.00 7.0/6.0 58.55 450.0/102273 508.5> 21.00
40B-2 63.500 39.37 38.10 22.89 154.5 161.5 52.96 8.5/8.0 72.29 630.0/143182 711.9 32.00
48B-2 76.200 48.26 45.72 29.24 190.4 198.2 63.80 12.0/10.0 91.21 1000.0/227272 1130.0 50.00
56B-2 88.900 53.98 53.34 34.32 221.2 229.6 77.80 13.5/12.0 106.60 600.0/363635 1760.0 71.48
64B-2 101.600 63.50 60.96 39.40 249.9 258.4 90.17 15.0/13.0 119.89 2000.0/454544 2200.0 91.00
72B-2 114.300 72.39 68.58 44.48 283.7 292.7 103.60 17.0/15.0 136.27 2500.0/568180 2750.0 120.40

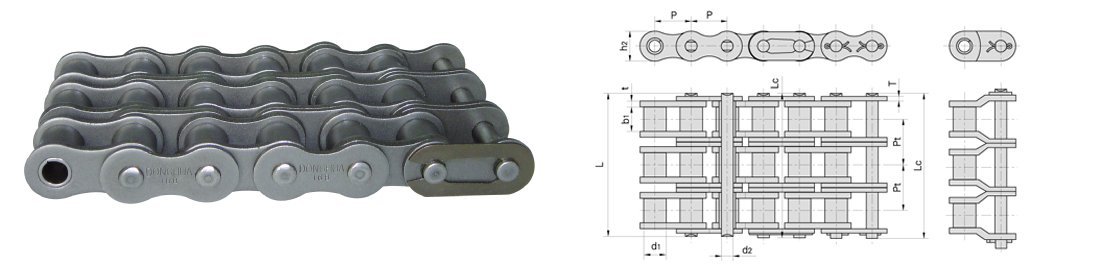

Triplex Roller Chains
DIN/ISO Chain No. Pitch (p | mm) Roller Diameter Inner plates Width Pin Diameter () Pin Length Inner Plate Depth Plate Thickness Transverse Pitch Ultimate Tensile Strength Average Tensile Strength Weight per meter
p d1 max b1 min d2 max L max Lc max h2 max t/T max Pt Q min Q0 q
mm mm mm mm mm mm mm mm mm kN/LB kN kg/m
05B-3 8.000 5.00 3.00 2.31 13.9 19.5 20.2 0.90 5.64 11.1/2523 13.8 0.48
*06B-3 9.525 6.35 5.72 3.28 33.5 34.6 8.20 1.30 10.24 24.9/5859 30.1 1.16
08B-3 12.700 8.51 7.75 4.45 45.1 46.1 8.20 1.30 10.24 24.9/5659 30.1 1.16
10B-3 15.875 10.16 9.65 5.08 52.7 54.1 14.70 1.70 16.59 66.7/15159 84.5 2.77
12B-3 19.050 12.07 11.68 5.72 61.5 63.1 16.00 1.85 19.46 86.7/19705 101.8 3.86
16B-3 25.400 15.88 17.02 8.28 99.8 101.2 21.00 4.15/3.1 31.88 160.0/36364 203.7 8.13
20B-3 31.750 19.05 19.56 10.19 114.2 117.9 26.40 4.5/3.5 36.45 250.0/56818 290.0 10.82
24B-3 38.100 25.40 25.40 14.63 150.1 154.6 33.20 6.0/4.8 48.36 425.0/96591 493.0 20.10
28B-2 44.450 27.94 30.99 15.90 184.2 188.7 36.70 7.5/6.0 59.56 530.0/120454 609.5 24.92
32B-3 50.800 29.21 30.99 17.81 183.2 188.2 42.00 7.0/6.0 58.55 670.0/152273 770.5 31.56
40B-3 63.500 39.37 38.10 22.89 226.8 233.8 52.96 8.5/8.0 72.29 950.0/215909 1092.5 48.10
48B-3 76.200 48.26 45.72 29.24 281.8 289.4 63.80 12.0/10.0 91.21 1500.0/340909 1710.0 75.00
56B-3 88.900 53.98 53.34 34.32 327.8 336.2 77.80 13.5/12.0 106.60 2240.0/545450 2240.0 107.18
64B-3 101.600 63.50 60.96 39.40 369.8 378.3 90.17 15.0/13.0 119.89 3000.0/681820 3300.0 136.00
72B-3 114.300 72.39 68.58 44.48 420.0 429.0 103.60 17.0/15.0 136.27 3750.0/582270 4125.0 180.00
