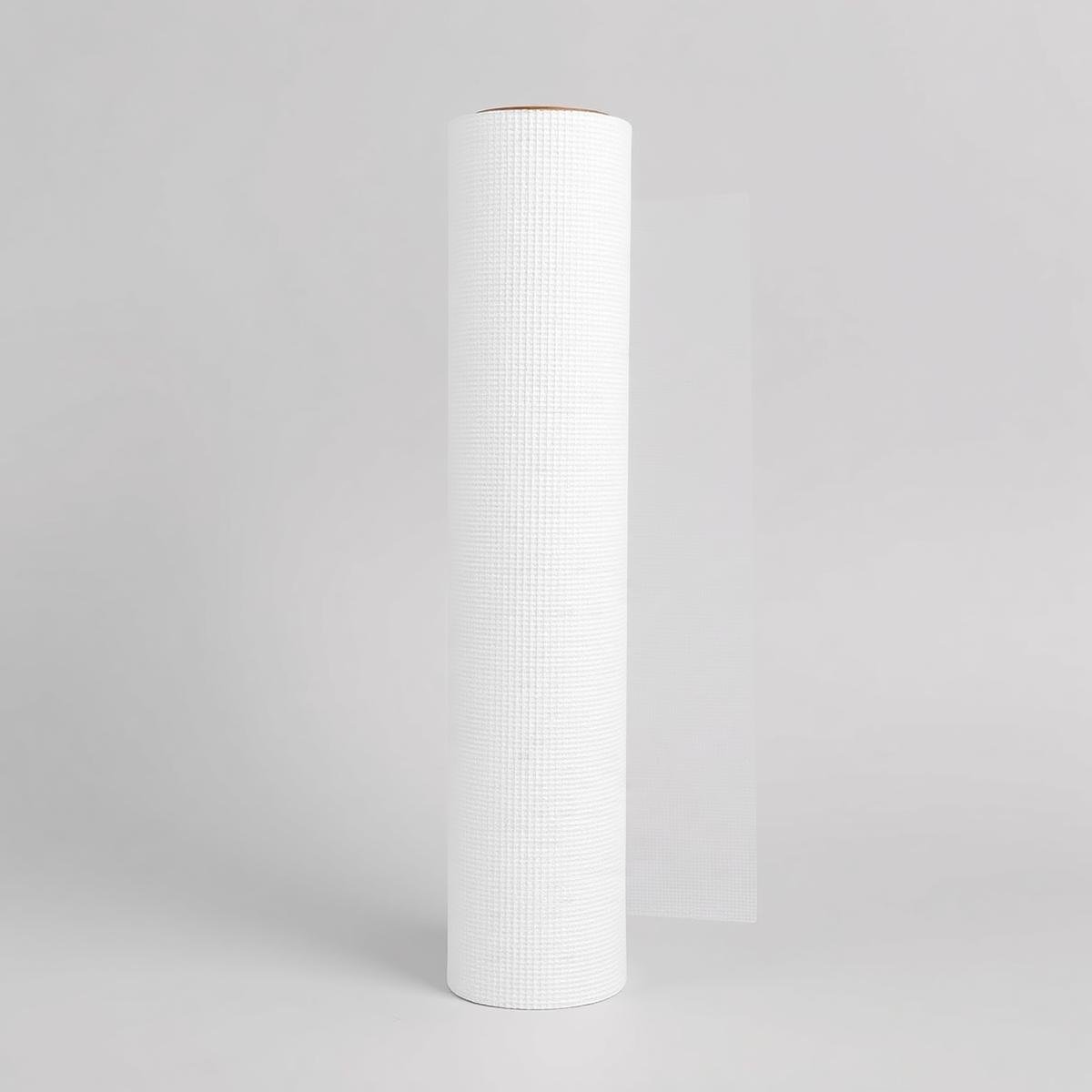

PVC Coated Panama Fabric B6000

PVC Coated Panama Fabric B6000

This B6000 PVC Coated Panama Fabric features a high tenacity polyester base cloth with a 30×30/inch Panama weave, coated on both sides with PVC for a total weight of 900 Gr/Sqm. Measuring 300cm wide, it boasts a glossy, easy-to-clean surface and offers UV resistance. Key features include flame retardancy to BS 5867, anti-mildew properties, and high tensile strength for superior durability. This strong, smooth, and flexible material is ideal for demanding applications such as truck side curtains, tents, and large shelters, with a temperature resistance from -30°C to +70°C.

Width: 300cm (118")PVC Coated Panama Fabric · Polyester Base Cloth · 900 Gr/Sqm
Features

• Glossy Surface Easy To Clean & Wash

• UV Resistant

• Flame Retardant As BS 5867 — Part:2:2008

• Anti-mildew; anti-fungus available

• High tenacity polyester yarn ensures superior durability

• Strong, smooth flexible material

Specifications
Base Cloth Polyester (DIN6000)
Construction 30×30/Inch Panama Weave (DIN EN 1049-2)
Yarn (detex) 1000*1000 D (DIN EN ISO 2060)
Type of Coating PVC Coated on both sides
Total Weight 900 Gr/Sqm (DIN EN ISO 2286-2)
Width 300cm (118") (DIN EN ISO 2286-1)
Tensile Strength Warp: 4000N/5cm, Weft: 3800N/5cm (DIN 53354)
Tear Strength Warp: 550N/5cm, Weft: 500N/5cm (DIN 53356)
Adhesion Strength 100N/5CM
Temperature Resistant -30°C to +70°C
Flame Retardant BS 5867 : Part 2 : 2007
Application

• Truck Side Curtains

• Tents

• Large Shelters
