PAF-12 PVC Tarpaulin 400 GSM

PAF-12 PVC Tarpaulin 400 GSM
PAF-12 PVC Tarpaulin 400 GSM - Image 2
PAF-12 PVC Tarpaulin 400 GSM - Image 3
PAF-12 PVC Tarpaulin 400 GSM - Image 4
PAF-12 PVC Tarpaulin 400 GSM - Image 5

PAF-12 PVC Tarpaulin 400 GSM

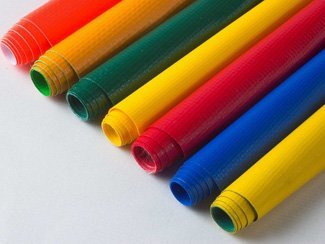

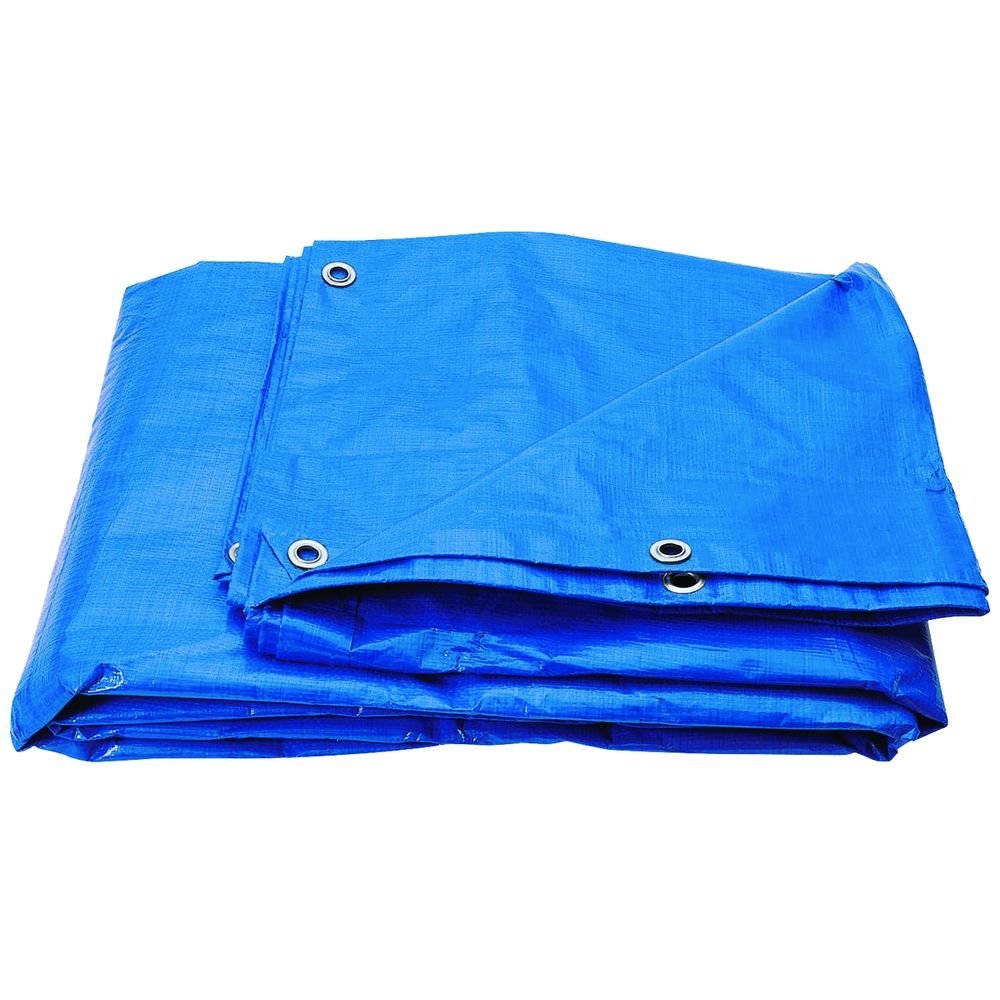

This PAF-12 PVC Tarpaulin is a 400 GSM, two-sided PVC-coated tarpaulin, manufactured with a high tenacity and low shrinkage polyester yarn base cloth. It features excellent UV resistance, high tensile strength, and a light weight for easy handling. Available in various colors, this tarpaulin is suitable for general tarpaulin applications, offering reliable performance with a temperature resistance from -30°C to 70°C.

Category: Brand:
PAF-12PAF-12 PVC Tarpaulin 400 GSM
Description

PVC COATED TARPAULIN 400 GSM

Features • UV Resistance • Light Weight, High Tensile Strength • Glossy & Matt Surface
Application • Tarpaulins
Specifications
TECHNICAL SPECIFICATIONS: PAF – 12
Property Units Test Method Test Result
Base Cloth Denier Density/Sq inch DIN6000, DIN EN 1049-2, DIN EN ISO 2060 High Tenacity & Low Shrinkage Polyester Yarn, Plain Weave Rip Stop 500 x 1000 D 30 x 16
Total Weight gr/m2 DIN EN ISO 2286-2 400 Gr/M2 (+/- 20)
Tensile Strength N/5cm DIN53354 Warp: 2200, Weft: 2200
Tear Strength N/5cm DIN53356 Warp: 300, Weft: 280
Adhesion Strength 100 N/5cm — —
Temp. Resistance oC — -30°C to 70°C
Flame Retardant — NFPA701, M2, B1 —
Type of Coating — — PVC Coated on Both Sides Width
Colors — — Blue, green, grey, orange
