PAA-20 PVC Coated Fabric 680 GSM

PAA-20 PVC Coated Fabric 680 GSM
PAA-20 PVC Coated Fabric 680 GSM - Image 2
PAA-20 PVC Coated Fabric 680 GSM - Image 3
PAA-20 PVC Coated Fabric 680 GSM - Image 4

PAA-20 PVC Coated Fabric 680 GSM

The PAA-20 PVC Coated Fabric is a durable Dutarp product crafted from high-tenacity, low-shrinkage polyester yarn with a 680 GSM total weight. This versatile fabric features excellent waterproof properties, is lighter than cotton canvas, and resists stretching during use. It offers superior weather resistance and is fire retardant as per DIN75200/BS3408, with a temperature resistance from -30 to +70 °C. Ideal applications include tents, boat and truck covers, equipment covers, and open-top container covers.

Category: Brand:
PAA-20PAA-20 PVC Coated Fabric 680 GSM
Description

Dutarp PVC Tarpaulins can be stitched and Welded by High Frequency welding machine with special Grommets/Eyelets. Reinforcements and Webbing as per customer’s requirement.

Characteristics • Excellent Water Proof. • Lighter Than Cotton Canvas • Does Not Stretch When You Use. • Excellent Resistance to Weather. • Fire Retardant as per DIN75200/BS3408

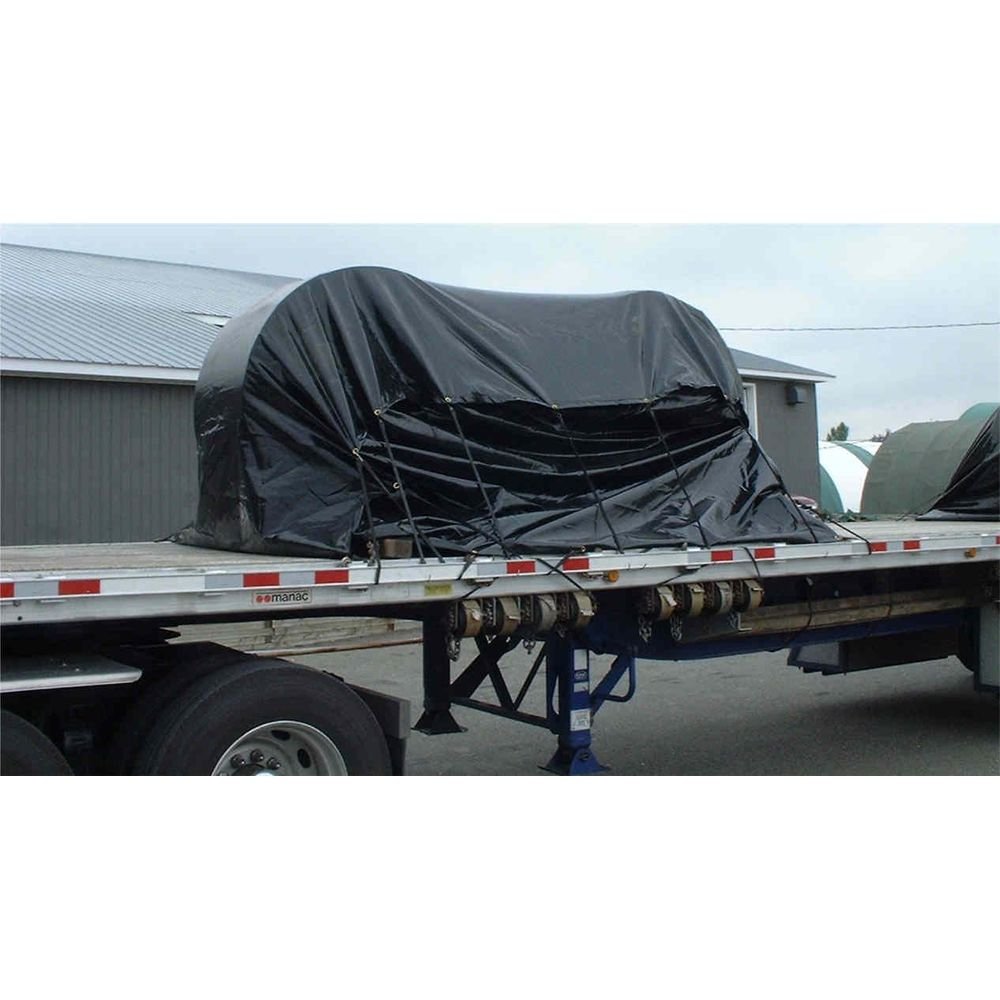

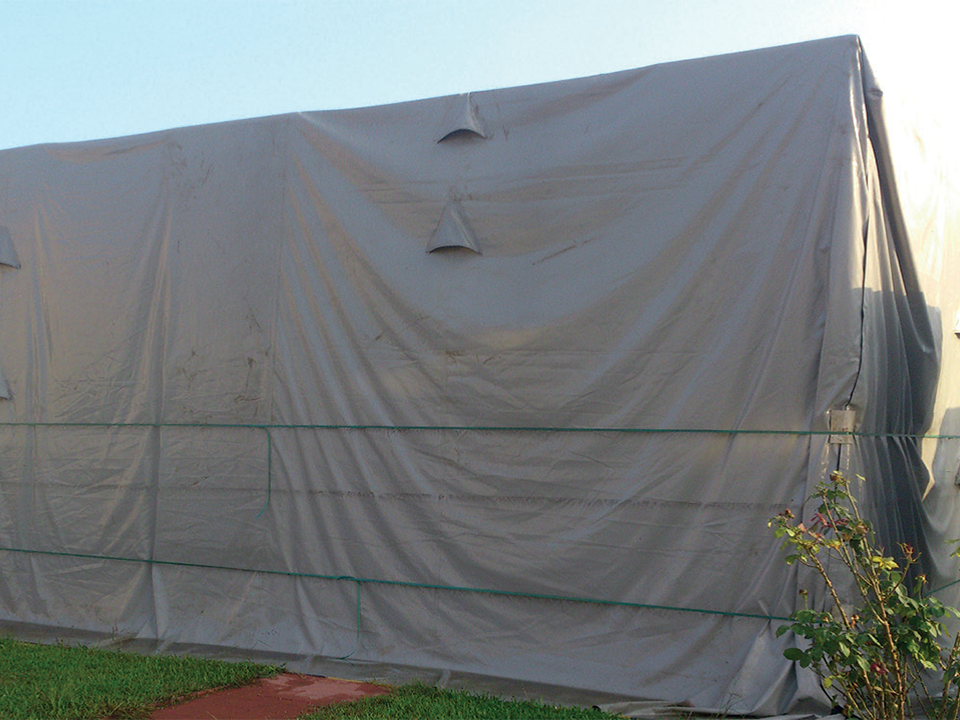

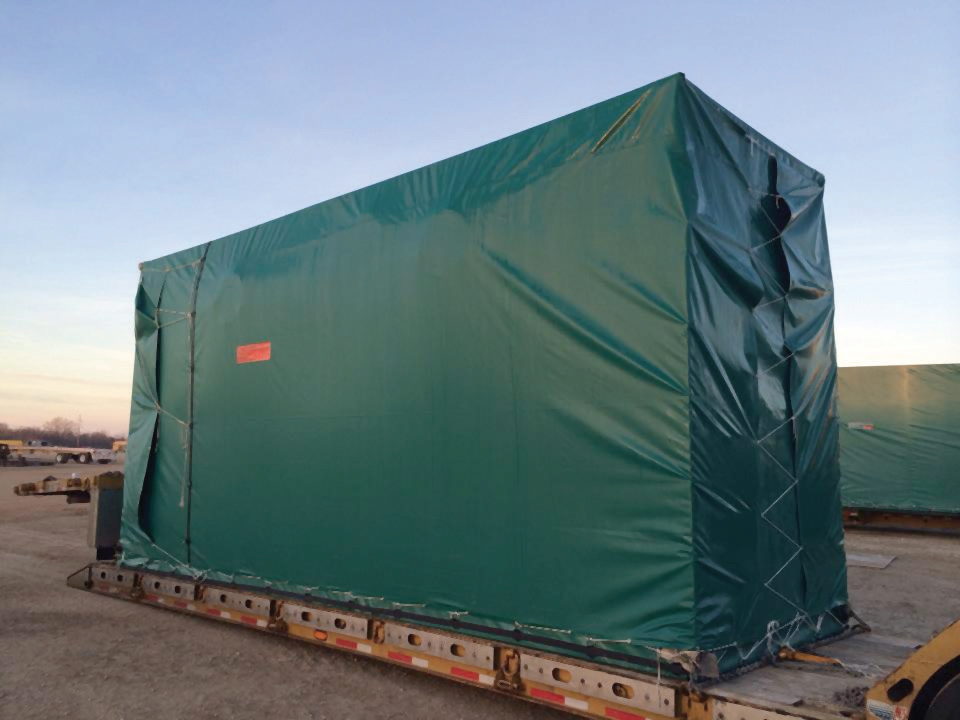

Applications • Tents • Tarpaulins • Boat Covers • Equipment Covers •Truck Covers • Open Top Container Covers
Specifications
TECHNICAL SPECIFICATIONS: PAA-20
Property Units Test Method Test Result
Base Cloth Denier, Density/sq. inch DIN60001, DIN53830, DIN61101 High Tenacity & Low Shrinkage Polyester Yarn Plain Weave 1000×1000, 18×18
Total Weight gr/m2 DIN53352 680(±30)
Tensile Strength N/5cm DIN53354 2400 x 2100 (each±250)
Tear Strength N DIN53356 300 x 200 (each±50)
Adhesion Strength N/5cm DIN53357 80 x 80 (each±10)
Temp. Resistance °C MIL-C-20696 -30 ~ +70
Fire Resistance DIN75200, BS3408 Pass
Anti-U.V. Treated
Surface Gloss on Topside Semi Gloss on Bottomside
Width cm 300
Available Colours

Green

Blue

Red

Grey
