The Complet Pro-350 is a professional-grade support system designed for fast and safe installation on terraces or balconies. Featuring a 100% metal structure, it offers uniform color and exceptional sturdiness, extending up to 6 meters without intermediate supports, with a projection of up to 3.50 m. Key features include a dual-adjustment system for arm parallelism and unit inclination (0-85º), plus a cassette system for easy roller assembly. It can be mounted on fronts, ceilings, or between walls, suitable for manual, motorized, or automated operation.

Product successfully added to the Quote List

Category: Awnings Brand: LLAZA

COMPLET PRO – 350 By and for professionalsComplete-Pro 350

Specifications

Description

The Complet Pro-350 support system combines all of the qualities most valued by professionals. Designed by and for professionals, Complet Pro-350 incorporates the latest in practical and advanced features to make installation fast and safe. Its dual-adjustment system means you can make sure the arm is parallel by easily accessing the internal tightening stud under the cap. The unit’s inclination can be set from 0-85º thanks to its reliable and accurate double-pivot system.
Its 100% metal structure gives it uniform colour and an elegant look. This unique feature also makes it exceptionally sturdy, extending 6 meters width without the need for intermediate supports, with projection of up to 3.50 m.
The roller assembly is easy to install thanks to the lateral cassette system that supports it while the final

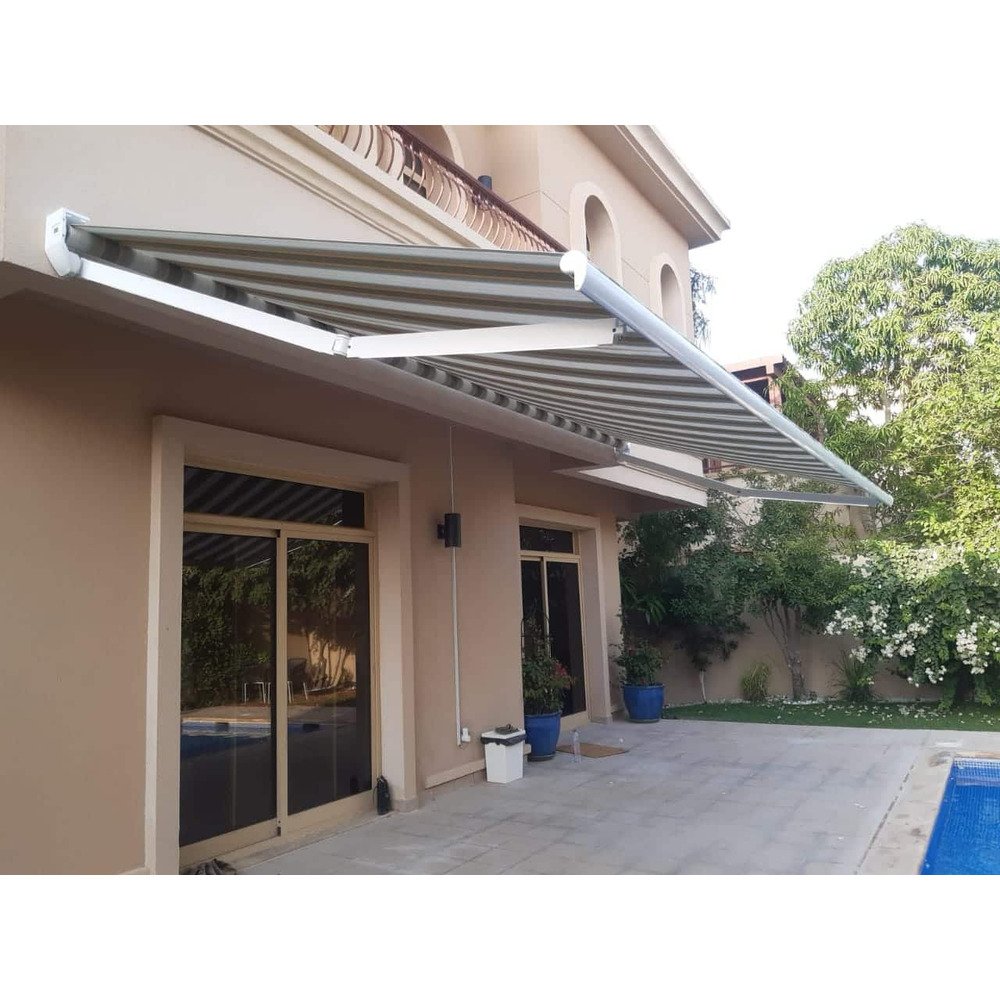

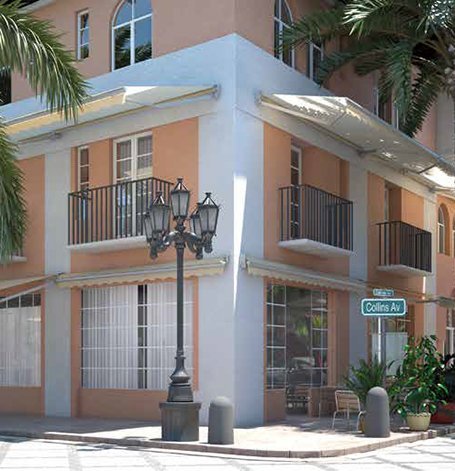

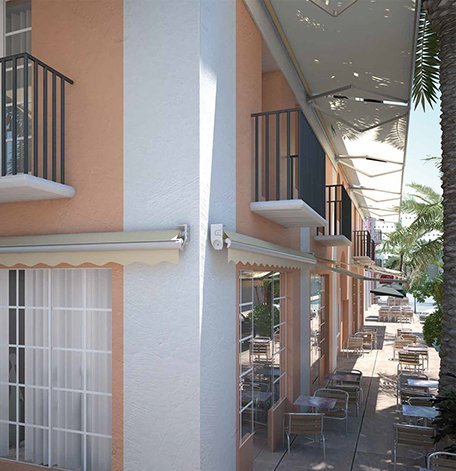

attachments are made. Its compactness and sleek look make it perfect for front, ceiling or between-wall installation on terraces or balconies.
Features:
·Safe and reliable arm alignment and unit inclination dual-adjustment system
·Retention system to prevent screws and bolts from falling out during installation
·Cassette system with self-supporting roller assembly to ensure comfortable, safe and
uninterrupted installation
·Functional compact linear design that adapts to any style of facade
·Balanced look, 100% metal without plastic elements to interfere with uniformity of colour.

Tensioning system

The Complet Pro-350 support system is compatible with two arms

Ideal for installation on:

ART 350: Features internal ART tensioning	system, comprised of a flat and flexible belt to improve transmission and increase lifespan.
ONYX – ONYX LUX: Belt transmission	system for a perfect balance of strength, durability and flexibility. Designed to ensure that the fabric never rubs against the arm’s elbow joints. The LUX features a slot with a diffuser for LED lighting.
SPLENDOR 400: Optimal tension thanks	to its self-adjusting system with ball bearings in the elbow joint. Total concealment of the transmission system gives it a compact, elegant and sleek look.

Balconies

Terraces

Mounting	Front Ceiling Between walls
Operation	Manual Motorised Automated
Finishes	Lacquer in accordance with QUALICOAT standars Stainless steel screws and bolts

Galaxia weather cover

Sombrex-system

Crossed arm kit

Width [m]	Interior gearbox Exterior gearbox motor 1.50 1.95 m 2.00 m 1.75 2.20 m 2.25 m 2.00 2.45 m 2.50 m 2.25 2.70 m 2.75 m 2.50 2.95 m 3.00 m 2.75 3.20 m 3.25 m 3.00 3.45 m 3.50 m 3.25 3.70 m 3.75 m 3.50 3.95 m 4.00 m
MOTOR SELECTION TABLE	Arm projection R. TUBE Ø 70 mm 1,50 – 2,25 2,50 – 2,75 3,00 – 3,25 3,50 R. TUBE Ø 80 mm 60 Nm 50 Nm 55 Nm

Specifications

Width [m]	Interior gearbox	Exterior gearbox motor
1.50	1.95 m	2.00 m
1.75	2.20 m	2.25 m
2.00	2.45 m	2.50 m
2.25	2.70 m	2.75 m
2.50	2.95 m	3.00 m
2.75	3.20 m	3.25 m
3.00	3.45 m	3.50 m
3.25	3.70 m	3.75 m
3.50	3.95 m	4.00 m

MOTOR SELECTION TABLE	Arm projection
R. TUBE Ø 70 mm	1,50 – 2,25
	2,50 – 2,75
	3,00 – 3,25
	3,50
R. TUBE Ø 80 mm	60 Nm
	50 Nm
	55 Nm
